Description
| Power Rating at rated rpm (as per ISO08528 ) | 7.5 kVA |
| 6 kW | |
| Genset Model | KG4-7.5WS1 |
| Fuel Tank Capacity | 28 Litres |
| Weight of Genset with canopy (Dry) | 545 kg |
| Overall dimensions of Genset (Length) | 1600 mm |
| Overall dimensions of Genset (Width) | 760 mm |
| Overall dimensions of Genset (Height) | 1050 mm |

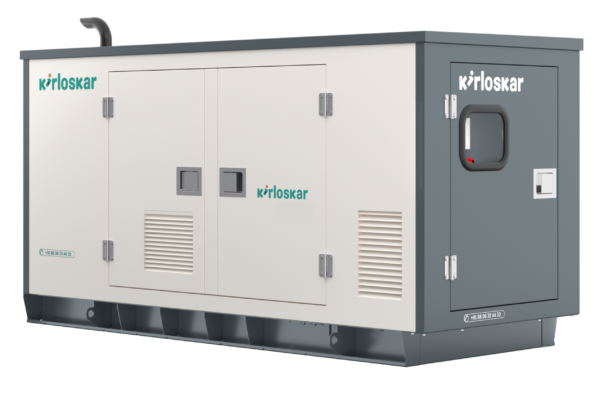

Kirloskar Powergen Silent Diesel Generator operates at a frequency of 50 Hz and has a power factor of 0.8 lagging. It provides voltage options of 230V for single-phase and 415V for three-phase systems. According to ISO 8528 Part V, it falls under the G2 governing class. The noise level of the generator, when measured at a distance of 1 meter, is less than <75 dBA, particularly for models equipped with a canopy.
ENGINE:
| Engine Model | 2R550NA 4G1 |
| Rated output (Prime Continuous rating as per ISO 8528-1) | 7.9 kW |
| 10.74 HP | |
| Number of Cylinder | 2 |
The cooling system operates using liquid, with a bore and stroke measurement of 86 mm by 94 mm. It has a rated speed of 1500 RPM and requires a lube oil change every 500 hours. The lube oil sump has a capacity of 3.8 litres, while the combined coolant capacity for the engine and radiator is 3.4 litres.
ALTERNATOR:
Kirloskar produces alternators with an insulation class of Class H. The efficiency of these alternators at full load with a power factor of 0.8 is 82.4%. When operating at full load with a lagging power factor of 0.8, the maximum voltage dip is less than 20%. Additionally, the time required to achieve the rated voltage at the rated RPM is under 2 seconds, assuming the engine reaches the specified speed.
BATTERY:
1 No.12 Volts Factory Pre-charged P.P. Battery with leads.
